Polychromatic Shaping Solution with High Efficency

BD (Broadband Diffusers) are special flat-top beam shaping micro-refractive diffusers, dedicated to broadband high power applications. These include systems where multiple lasers are used in the same optical path (RGB module), tunable lasers and frequency doubled lasers operating over a broad spectral range.

Typical applications are in the fields of aesthetic medicine where a few wavelengths are used for different procedures, microscopy applications with broadband wide spectrum sources, laser display projection (cinema), and some very specific scientific applications.

A special manufacturing process that was developed in our company allows Holo/Or to make quick and affordable custom shapes and angles of the BD with delivery time comparable with diffractive diffusers. The BD element can be used in the same optical setups as a microlens array or diffractive diffuser element.

Designed using innovative modified fractal algorithms, the BD delivers some additional advantages such as:

  • Same performance for wide wavelength spectrum from IR to UV.
  • Excellent homogenization for multimode lasers
  • High efficiency
  • No Zero Order

The BD is used for shaping beams into either round, rectangle or line flat top shapes, and provides the same high-efficiency optical output for a wide wavelength spectrum from UV to IR with no zero order.

Broadband diffuser microstructure

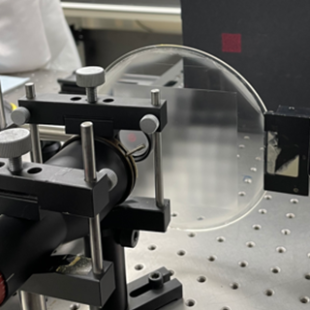

Broadband Diffuser
Broadband diffuser BD-001

SPEC TABLE FOR Standard BROADBAND DIFFUSER products

PN
Shape
Diffusion Angle (degrees)
Dimensions
Central Thickness
Material
Download Data Sheet
Add to Quote
BD-001
Round
5
15X15mm
1.524mm
UV Fused Silica
Download here
Add to Quote
BD-002
Round
10
15X15mm
1.524mm
UV Fused Silica
Download here
Add to Quote
BD-003
Round
20
15X15mm
1.524mm
UV Fused Silica
Download here
Add to Quote
BD-004
Square
5X5
15X15mm
1.524mm
UV Fused Silica
Download here
Add to Quote
BD-005
Square
10X10
15X15mm
1.524mm
UV Fused Silica
Download here
Add to Quote
BD-006
Square
15X15
15X15mm
1.524mm
UV Fused Silica
Download here
Add to Quote
BD-007
Line
5
15X15mm
1.524mm
UV Fused Silica
Download here
Add to Quote
BD-008
Line
10
15X15mm
1.524mm
UV Fused Silica
Download here
Add to Quote
BD-009
Line
20
15X15mm
2.29mm
UV Fused Silica
Download here
Add to Quote
BD-011
Round
13.2
15X15mm
1.524mm
UV Fused Silica
Download here
Add to Quote
BD-015
Square
10X10
34X34mm
1.524mm
UV Fused Silica
Download here
Add to Quote
BD-016
Round
1.2
18X18mm
2.29mm
UV Fused Silica
Download here
Add to Quote
BD-017
Round
1.5
18X18mm
2.29mm
UV Fused Silica
Download here
Add to Quote
BD-018
Square
12.8X12.8
34X34mm
1.524mm
UV Fused Silica
Download here
Add to Quote
BD-022
Round
1.3
18X18mm
2.29mm
UV Fused Silica
Download here
Add to Quote
BP-001
Round
14.8
10X10mm
0.5mm
Polymer on Glass
Download here
Add to Quote
BP-002
Round
20
15X15mm
1.524mm
Polymer on Glass
Download here
Add to Quote
BP-003
Round
5.2
10X10mm
1mm
Polymer on Glass
Download here
Add to Quote
BP-004
Square
12X12
10X10mm
1mm
Polymer on Glass
Download here
Add to Quote

Diffusion angles up to 20 degrees in Fused-Silica, or up to 70 degrees in Polymer on Glass (POG) available upon request.

BD elements can be produced on either UV grade fused silica or high-grade Polymer on Glass fully compatible with SMT soldering.

Contact Us for more information or for custom solution.
